Electric Folding Power Wheelchair
Portable power. Everyday freedom.
A lightweight 6061 aluminium frame, dual brushless motors, and a folding design bring powered mobility into a compact, practical format.
20 kmMaximum range
18.15 kgNet weight
100 kgWeight capacity
Review quality and specifications first.
Discuss pricing and quantities in a procurement meeting.
Product overview
Portable power. Everyday freedom.

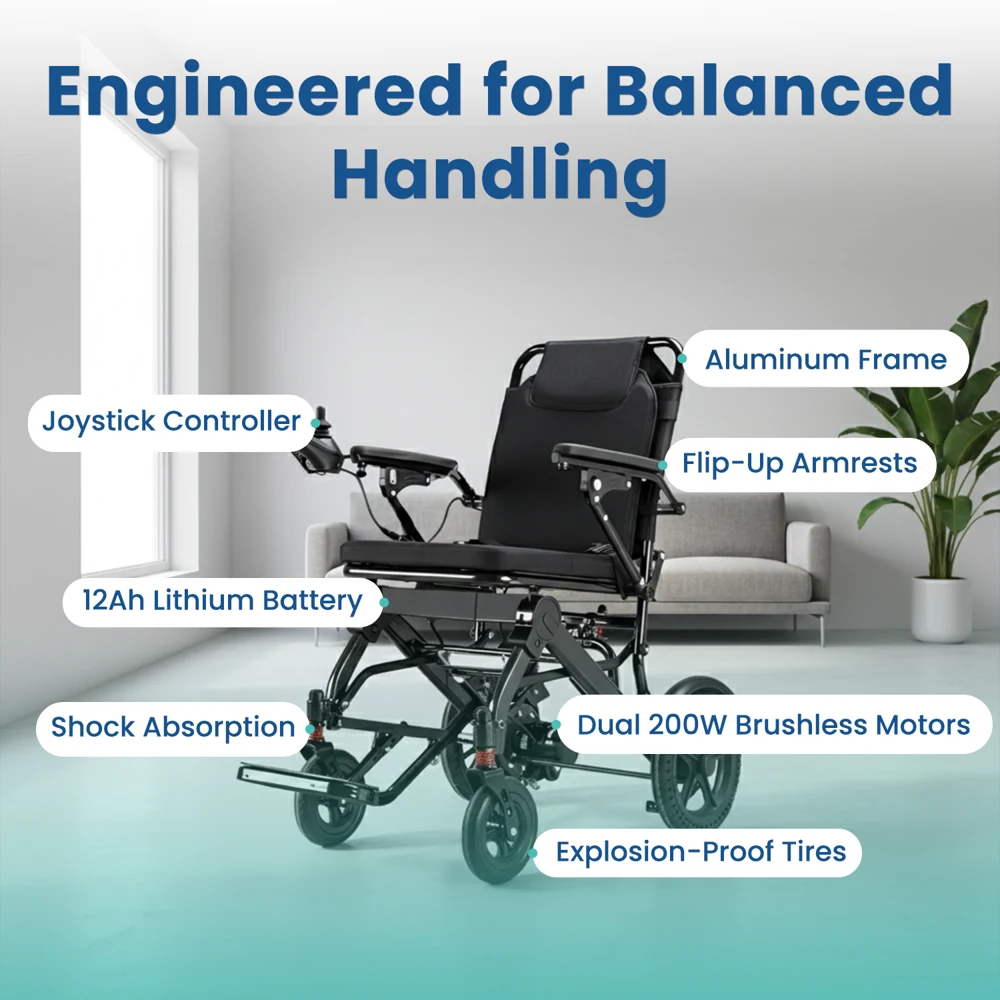

A portable powered mobility option for healthcare providers and distribution partners. The 208CP / 208 combines a 6061 aluminium alloy frame with two 200W brushless motors, electromagnetic braking, and integrated Bluetooth control. Its folding frame supports compact storage and transport, while the catalogue-stated range of up to 20 km supports everyday mobility needs. Review the complete specifications and intended-use documentation when selecting equipment for your programme.
Key features

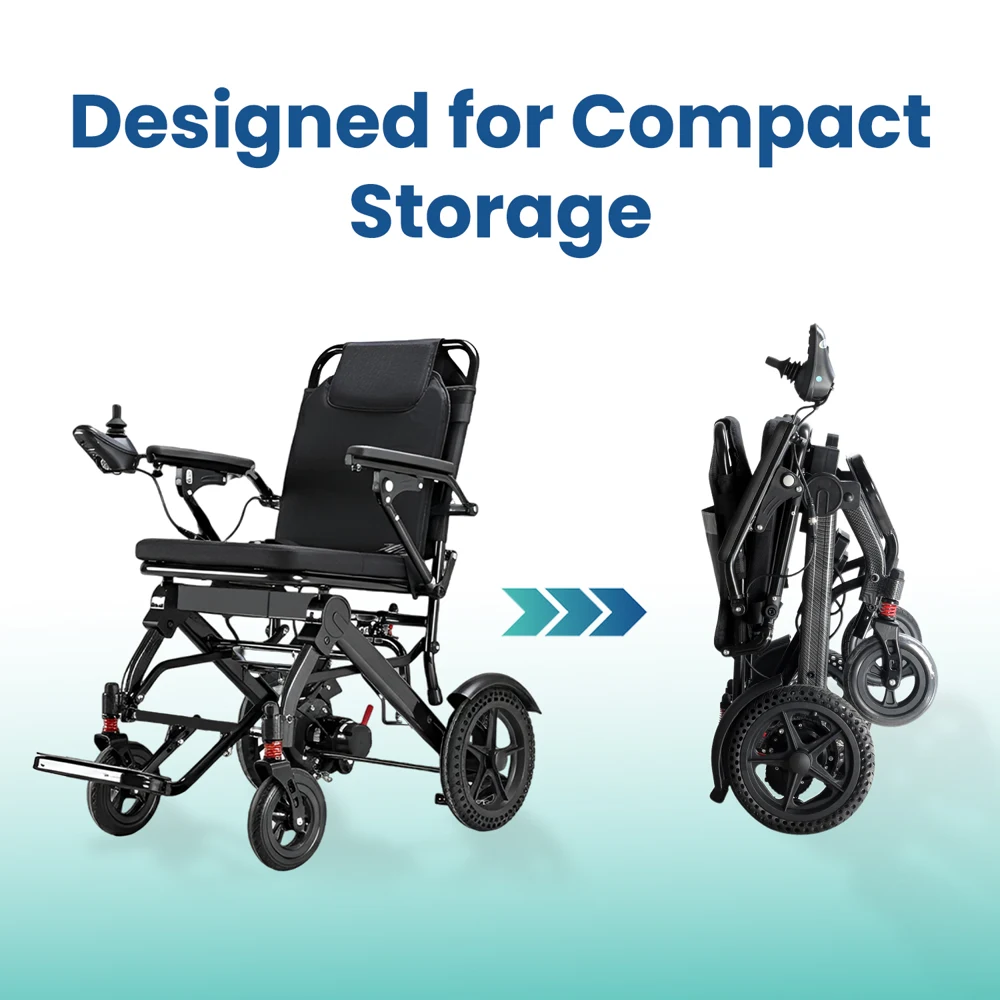

Folding design for one-person handling
Electromagnetic braking and Bluetooth control
LED indicator on the controller
Up to 20 km range; 3–5 hour charging
Technical information
Specifications, clearly presented.
Manufacturer-stated specifications from the supplied catalogue. Confirm the exact model and configuration before ordering.
Frame, drive & battery
| Frame | 6061 aluminium alloy |
|---|---|
| Motors | 24V, 200W × 2 |
| Battery | 24V 12Ah lithium |
| Controller | Yaton brushless |
| Charger | AC110V, 24V 3A |
| Charge time | 3–5 hours |
| Weight capacity | 100 kg |
Performance
| Maximum forward speed | Up to 6 km/h |
|---|---|
| Maximum backward speed | Up to 2 km/h |
| Driving range | Up to 20 km |
| Minimum turning radius | 850 mm |
| Climbing capability | 9° at 100 kg |
| Obstacle clearance height | 25 mm at 100 kg |
| Ditch crossing width | 100 mm at 100 kg |
| Ground clearance | 35 mm at anti-tip wheel; 90 mm at motor |
Tyres & wheels
| Front tyres | 7 in (176 × 31 mm), PU solid |
|---|---|
| Rear tyres | 11 in (274 × 38 mm), honeycomb solid |
| Rim material | Nylon, 52 × 12 mm |
Seat & comfort
| Seat material | Oxford cloth / cotton, sponge inside |
|---|---|
| Seat width | 430 mm |
| Seat depth | 400 mm |
| Seat thickness | 40 mm |
| Backrest height | 470 mm |
| Seat-to-ground height | 520 / 560 mm (with anti-tip wheel) |
| Seat-to-foot-platform height | 410–450 mm |

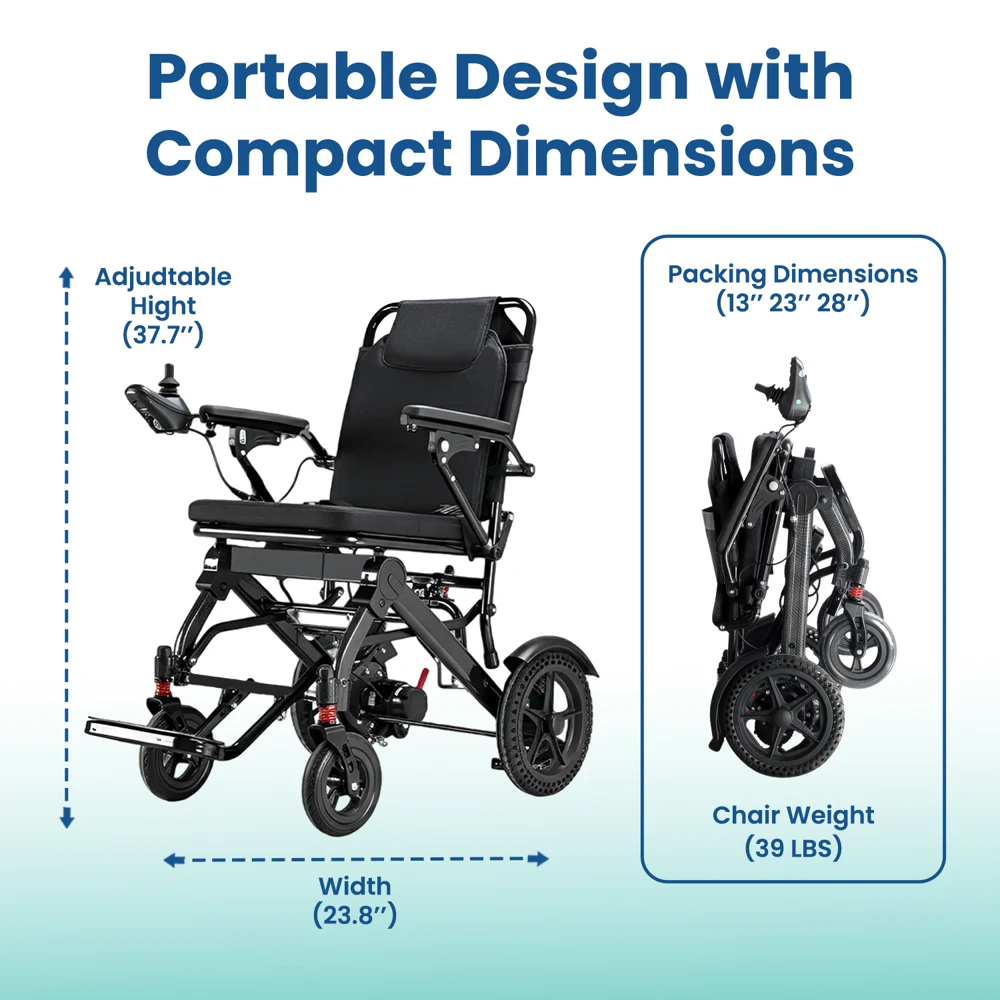

Dimensions & packing
| Overall length | 960 mm |
|---|---|
| Overall width | 605 mm |
| Overall height | 950 mm |
| Folded size (L × W × H) | 340 × 605 × 730 mm |
| Net weight | 18.15 kg + 0.65 kg charger |
| Gross weight with carton | 25 kg |
| Packing size | 625 × 340 × 790 mm |
Source: Medacsi Care equipment catalogue, page(s) 3–4. Dimensions and weights are nominal and may be subject to manufacturing tolerances. Performance depends on configuration, load, and operating conditions. Product fit and suitability should be assessed by your organisation.
Product gallery
A closer look at the details.
Product imagery reproduced from the supplied catalogue. Select an image to enlarge it.
Plan your procurement
Consider the whole order.
625 × 340 × 790 mm carton · 25 kg gross weight
Share your required quantity, delivery location, and target timeframe. Our team will discuss order quantities, packing, availability, freight requirements, and commercial terms after reviewing the product’s quality and suitability with you.
